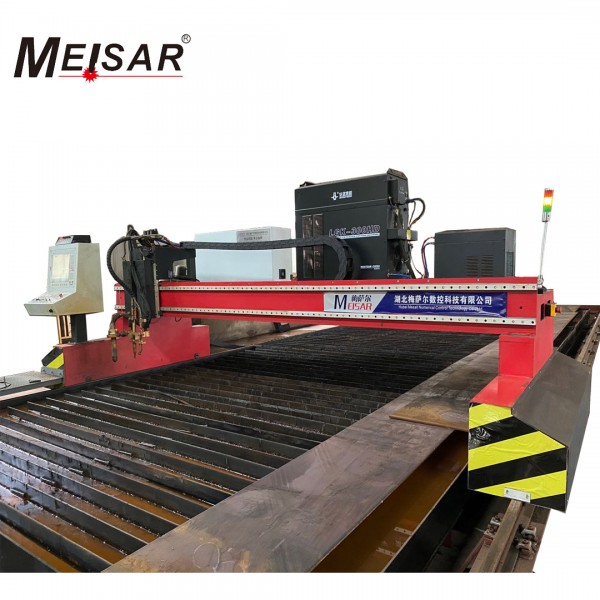

MS-4B-7012 Gantry CNC flame&plasma cutting machine

Short Description:

This series of plasma cutting machine is a high efficiency and high performance equipment, which uses gantry type, single drive or double drive. This machine uses advanced CNC system from abroad, such as Spanish FAGOR and American Hypertherm. Its excellent cutting parameters, reliable and stable features ensure the perfect cutting effect. CNC flame/plasma torch has auto height regulator and auto ignition functions, which is convenient for use.


Product Detail

Product Tags

eatures

  1. The whole machine adopts the welded steel plate welded structure. The beam is cut by laser cutting and then welded together. The upper and lower sides of the beam are bent by 90 degrees with the steel plate, which can reduce the deformation and increase the rigidity.
  2. The beam hanging plate is welded with 20mm steel plate, and the whole surface is processed by gantry planer to reduce the deformation of the whole surface and improve the precision.
  3. After the whole machine is welded, firstly, the aging treatment is performed after stress aging, followed by the surface rust removal treatment. After the primer is applied, the surface is painted.

Technical parameter

Model MS-4B (4080) MS-4B (5012) MS-4B (6012) MS-4B (7012)
Machine structure

Laser cutting, steel plate welding structure with heat treatment

Effective cutting range(X/Y) 3000 x 6000mm 4000 x 10000mm 5000 x 10000mm 6000 x 10000mm
Lateral rail spacing 4000mm 5000mm 6000mm 7000mm
Longitudinal guide length 8000mm 12000mm 12000mm 12000mm
The number of lifts

Standard for the double moving lift device

Input voltage

AV-220V Single phase AV-220V

input power

About 2500W

About 3000W

Running speed

0-10000mm/min

Cutting type

1, plasma cutting (with plasma power) 2, flame cutting 3, flame + plasma cutting

Torch lift

≤160mm

Operating accuracy

0.2mm/m

Flame cutting thickness

Piercing thickness: 5-60mm Edge cutting thickness: 5-200mm

Plasma cutting thickness

According to the size of the plasma power supply

Flame automatic Ignition device

With flame automatic ignition device function
