Gantry cutting machine QMS

QUALITY MANAGEMENT SYSTEM

Meisar CNC is one of the biggest suppliers among cutting equipment in east China. Company mainly engage in CNC Gantry cutting machine, CNC plasma cutting machine, CNC Pipe/Tube cutting machine, etc. Meisar CNC has 14 years history, serving more than 80 countries and regions.

Meisar CNC has strict quality control system and quality management team. Strictly adhere to the general standards of the industry and company guidelines. Implement quality monitoring from every aspect of R&D, production and after-sales of laser equipment, to ensure that each device can meet customer’s requirements.

Incoming Inspection

For every part of the machine, Meisar CNC is strictly control the quality.

Not only require suppliers to provide quality inspection reports, but also strict quality monitoring will be carried out when the parts are in the factory.

Plasma Source Test

Track and Rack Detection

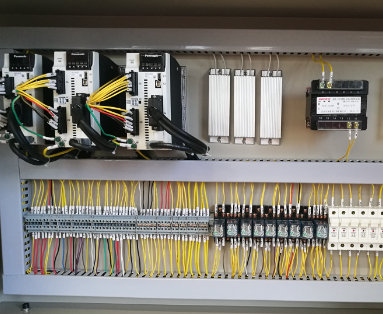

Electron component Detection

Motor / Reducer Testing

 01  02  03  04

Stability test and cutting test for plasma power source.

The precision and consistency between gear and rack are mainly tested

Load tester and oscilloscope are used to detect the consistency parameters and peak power of electronic components.

We will adjust the suitability of the machine through continuous empty experiments.

Process Control

The assembly process of the machine will also affect the customer’s feeling when using the machine, Therefore, in the process of machine assembly, Meisar CNC from the most basic machine bed to the final assembly of the whole machine is strictly followed by the quality management standard.

Machine Bed Welding

Gantry Milling

Guide Rack Mounting

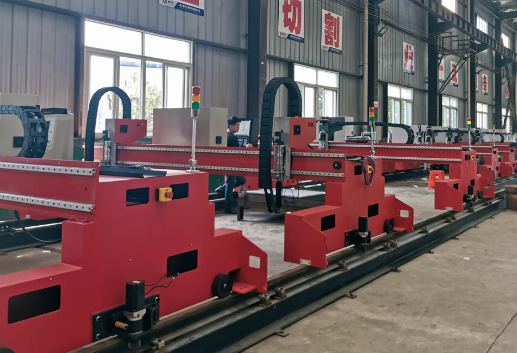

Other Hardware Parts Installation

 05  06  07  08

The bed frame is welding by the China best steel plate

Meisar CNC has its own gantry milling, use planer processing to reduce secondary contact

The straightness of guide rack is guaranteed by using laser collimator

We install the motor reducer strictly according to standard production process

Pre-delivery Inspection

The machine will accept a number of quality testing, respectively, from the performance, stability, fit, practical and other aspects of consideration, for non-compliance with the standard part of the arrangements for debugging and maintenance, To ensure that the final factory, the machine is in the best condition.

Inspection Report

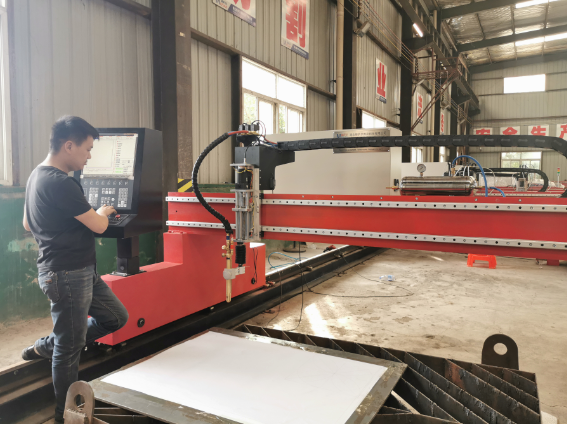

Drawing Test

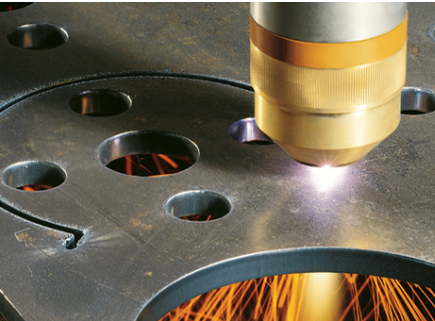

Cutting Test

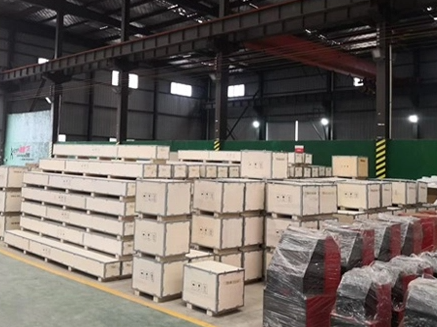

Machine packing

 09  10  11  12

Every component of the machine, every performance, every parameter is carefully tested.

Ensure the cutting accuracy through drawing testing, and make sure the machine will be in the best condition.

Before delivery, different metal materials will be cut, observe the cutting effect, and then adjustment according to the need

The gantry equipment requires multiple protective measures during the packing process to ensure that each component is not affected by the collision
