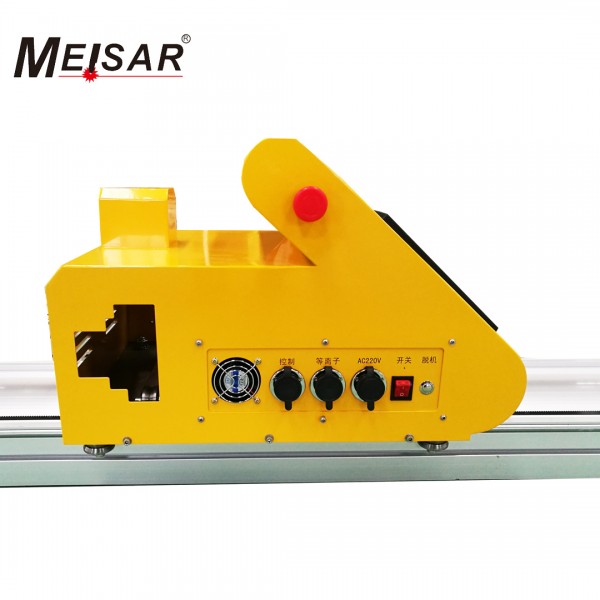

MS-1530XGB Portable Pipe and Plate CNC cutting machine

Short Description:

MS 1530XGB Portable CNC Pipe/tube cutting machine. Meisar MS portable intersection cutting machine can achieve two kinds of tube and plate cutting method, can greatly save customers cost. Machine support round tube guide rail is with 24KG/M fine grinding guide, has heavy bearing capacity, long life and other advantages. Chuck motor is with high precision Taiwan Delta servo motor drive, low noise, high precision, long service life. Adjustable screw for pipe support frame is using precision T-screw, when support the workpiece, can adjust smoothly.


Product Detail

Product Tags


System advantages

1. 7 inch color LCD screen, Easy to operation, Can switch multi languages.

2. Can achieve pipe and plate cutting function, Any plate / round pipe processing.

3. Pipe end cut off function, you can arbitrarily set the chamfering angle.

4. Shrimp lips elbow cut, can set the number of section, elbow angle.

5, Eccentric saddle head cutting; mother tube hole cutting can be used with the riding type, plug-in branch;

Features

  1. Meisar MS portable intersection cutting machine can achieve two kinds of tube and plate cutting method, can greatly save customers cost;

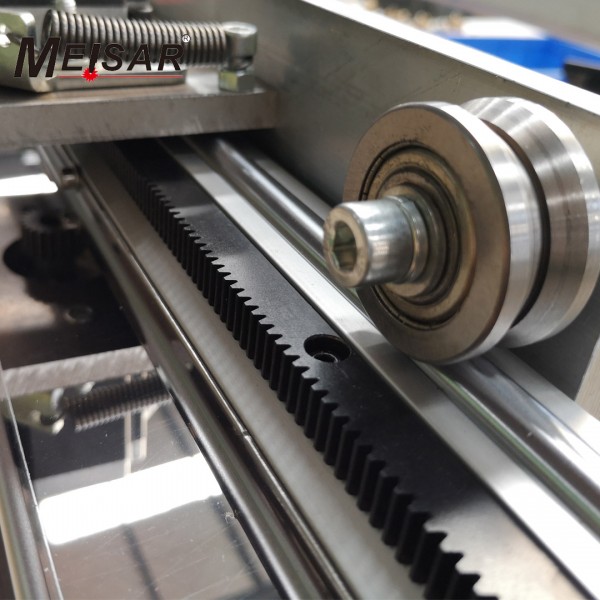

  2. Machine support round tube guide rail is with24KG / M fine grinding guide, has heavy bearing capacity, long life and other advantages.
  3. Chuck motor is with high precision Taiwan Delta servo motor drive, low noise, high precision, long service life;
  4. Tube support frame is using finishing screw; when support the workpiece, can save more effort;

Technical Parameters

Name

CNC tube plate dualuse cutting machine

Model MS-1030X MS-1060X MS-1530XGB MS-1560XGB
Motor type Delta ASDA400W Delta ASDA400W Delta ASDA400W Delta ASDA400W
Chuck size

250-type threejaw chuck (customizable)

Input voltage

Single phase AC-220V

input power

About 800W

Effective cutting length of steel pipe 3000mm 6000mm 3000mm 6000mm
Pipe diameter

StandardΦ40mm-300mm (can be customized large diameter)

Maximum carrying weight ≤500KG ≤800KG  ≤300KG  ≤800KG
 Support rail size

24KG / M fine grinding guide

How to use it

Intersecting line cutting

Tube plate dual purpose cutting

Customize information

For other sizes, weight, diameter requirements can be customized according to customer requirements

Cutting type

Plasma / flame cutting

Tube oval

≤2%

Number of pipe supports 1Set 2Sets 1Set 2Sets
Number of NC linkage axes 2 axis 2 axis 2 axis 2 axis
Torch lift

≤ 105mm

Operating accuracy

± 0.2mm/m

Flame cutting thickness

5mm-120mm

Plasma cutting thickness

Depending on the size of the plasma power supply

Plasma arc pressure is raised

HP-105 Standard for the Changzhou Hayes HP-105

Gas supply requirements

Acetylene / propane gas pressure ≤ 0.1MP

Oxygensupply requirements

Oxygen maximum pressure ≤ 1MP

Cutting table

Tube cutting Taiwan for the one-piece stnjcture, we provide cutting table drawings customers self-processing

portable cnc cutting
