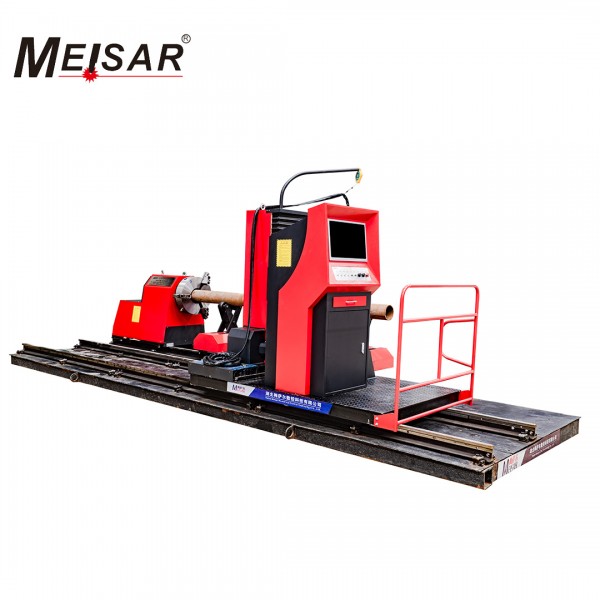

MS-6XG CNC Intersection Cutting Machine

Short Description:

The CNC Intersection cutting machine can cut a plurality of cylinder with different direction, different diameter of intersecting line hole, meet the vertical axis and axis condition branch director and no eccentric. The machine can also cut cylinder intersection line at the end of branch pipe, meet the pipe axis and the eccentric and no eccentric director axis intersecting condition.


Product Detail

Product Tags

Features

1、 MS-6XG series CNC pipe intersecting wire cutting machine is a kind of equipment for automatic calculation and cutting of the joint of steel pipe end.

2、 CNC pipe cutting machine adopts cylindrical coordinate coefficient control, and the number of control axes is 6 axes and 5 linkages. It has Chinese interface, parameter input variable angle groove surface cutting function, pipeline non-roundness and eccentricity compensation function.

3、The numerical control interface of 3/CNC pipe cutting machine is combined with graphics and data. The operation is very simple: the operator only needs to set the parameters such as the radius of the main pipe and the branch pipe, the intersection angle, the cutting speed and so on.

DSC04853

Technical parameter

Serial number

project

parameter

1

Effective cutting range (mm) 6000mm-120000mm

2

Tube diameter cutting range (mm) Ф60mm~Ф500mm

3

Input voltage 220±10%V  AC 50HZ/60HZ 220W

4

Total power About 1000w

5

Rated rotation speed 0-15rpm (can be adjusted according to customer requirements)

6

Reset accuracy ±0.2mm/m

7

Pipe Ovality 2%

8

Running accuracy ±0.2mm/m

9

Number of CNC controlled axes 6 axis 5 linkage

10

Chuck size 500#

11

Cutting torch lifting stroke 400mm

12

Maximum tube weight 1500KG

13

Plasma cutting thickness Depending on the size of the plasma power source selected by the user

14

Flame uses gas form Oxygen + acetylene / oxygen + propane

15

Flame cutting tube wall thickness 5mm ~ 50mm (optional)

16

Gas pressure 0.08MP

17

Oxygen pressure 1.0MP

18

Cutting material table Provide material table drawings
