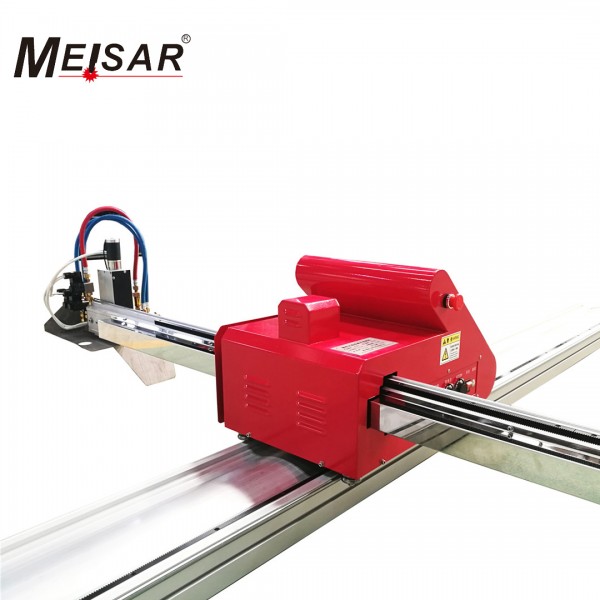

MS-2030 Portable CNC plasma and flame cutting machine
Meisar (Changzhou) Intelligent Technology Co., Ltd. carefully developed and developed a high-precision portable CNC flame / plasma cutting machine, its affordable, easy to use and easy to learn more accurate. Than the original cutting machine processing format larger, thicker cutting thickness. For wider,High strength, durable for a long time Effectively reduce processing costs. Machine covers an area of small, fully effective equipment to play the effectiveness.
1, the new special high-strength hard aluminum alloy rails, the whole operation smooth and no noise, with high-speed high-precision and so on. 2, the whole operation is simple, full-featured, with man-machine dialogue and so on.
3, can be achieved CAD file into a working program file, automatic nesting function, through the U disk transmission to the transmission to The system mainframe cuts the metal material arbitrarily.
4, with portable CNC cutting machine function, for carbon steel, stainless steel and non-ferrous metal cutting.
5, with plasma flame plasma dual-use cutting function.
6, with Chinese, English, French, Russian and other languages.
7, the system has automatic power off memory and automatic recovery function.

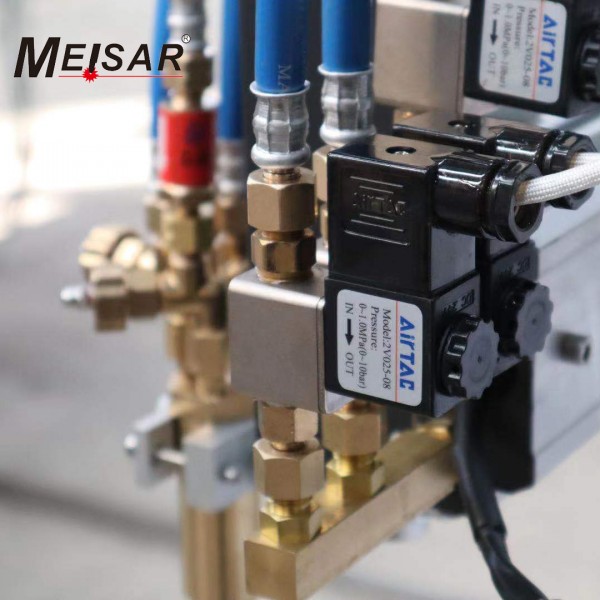

8, increase the way： electric height and arc pressure automatically increase the two, the flame for the electric increase, the plasma for the arc pressure automatically raised, self-test plate Adjust the change and automatically increase the height of the torch and steel plate, to avoid cutting the gun hit the steel plate to reduce losses.

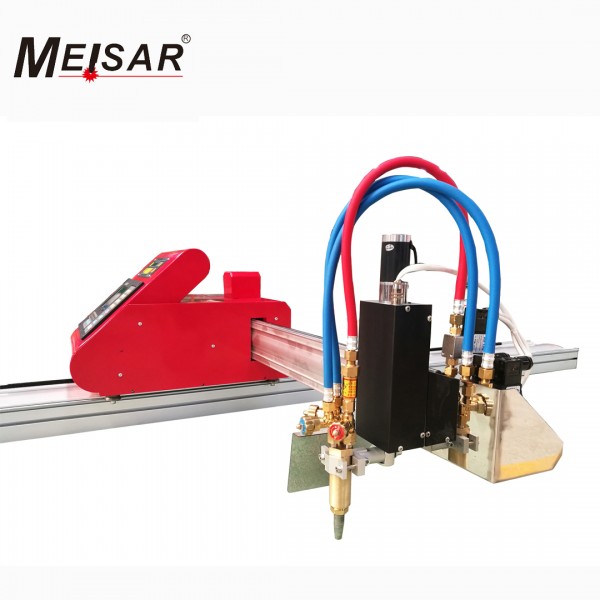

Portable CNC plasma and flame cutting machine
|Arc pressure increase||
No arc pressure adjustment device
|Cutting range (X * Y)||
The length of the guide rail (effective cutting length Y axis) can be customized according to customer requirements
|Y-axis guide size||
57 # stepper motor
|Torch raise type||
|The number of lifts||
Single phase AC-220V
0-6000mm / min (max 8000mm / min)
Flame / plasma cutting
Gear rack drive

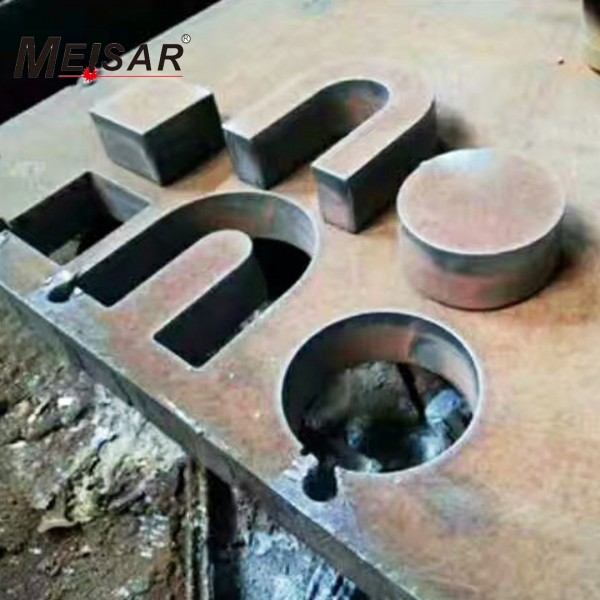

Piercing ability：5-60mm edge cutting 5-150mm
Depending on the size of the plasma power supply
|Flame ignition device||
Standard with no (customizable)
Acetylene / propane gas pressure ≤ 0.1MP
Oxygen maximum pressure ≤ 1MP
|Selection of color||
Red, yellow and blue
We provide cutting table drawings for the user reference (material required to purchase their own users)
