MS 60XF CNC Pipe tube cutting machine. This equipment covers the three-dimensional cutting of the ends of the intersecting lines of the round pipe and the square pipe, and the special plate can be customized according to the customer’s requirements. This series of products are suitable for steel structure,shipbuilding, marine engineering,pressure vessels,bridge towers and construction machinery and other industries.

Features

1、This system realizes six-axis linkage control and the axis can be expanded.

2、Support position control method and EnterCAT bus servo driver.

3、Operation control card, can achieve motion interpolation, more stable.

5、Real-time display of 3D graphics cutting (subsequent upgrades added).

6、Support position control mode,pulse output mode:direction/pulse or double pulse.



No.

Project

Parameter

1

Effective cutting length of tube (mm) 12000mm(Standard) Can be lengthened

2

Pipe cutting diameter(mm)

Ф40mm~Ф600mm

Square tube cutting range

40mm-250mm

3

Control input voltage

AC220±10%V 50HZ/60HZ

4

Total power

About5.5KW(Exclude Plasma Source)

5

Rated rotation speed

0-15rpm( Customized)

6

Reset accuracy

±0.2mm/m

7

Tube ovality

2%

8

Running accuracy

±0.2mm/m

9

CNC control axis number

8 axis

10

Chuck size

250mmCustomized)

11

Torch lifting range

400mm

12

Maximum tube weight

5000KG

13

Cutting method

Hypertherm XPR170 Plasma Source

14

Plasma cutting thickness Vertical

Piercing ability:3-35mm, Edge cutting:3-60mm

15

Plasma cutting thickness Bevel

Piercing cutting 3-35mm, Bevel cutting 3-20mm

(Determined by Plasma Source)

16

Flame cutting thickness (mm)

Exclude

17

Required workpiece ovality

1%

18

Cutting speed

102000mm/min

19

Running speed

106000 mm/min

20

Torch swing angle

α=±60°

21

Radial swing angle of cutting torch

β=±55°

22

Cutting length accuracy

±1.5mm

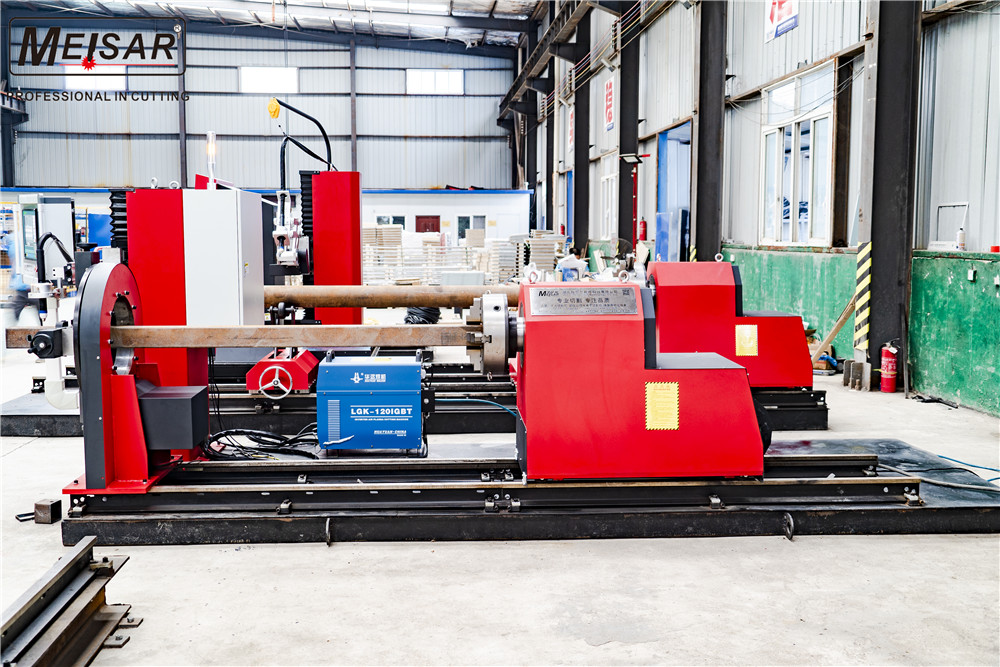

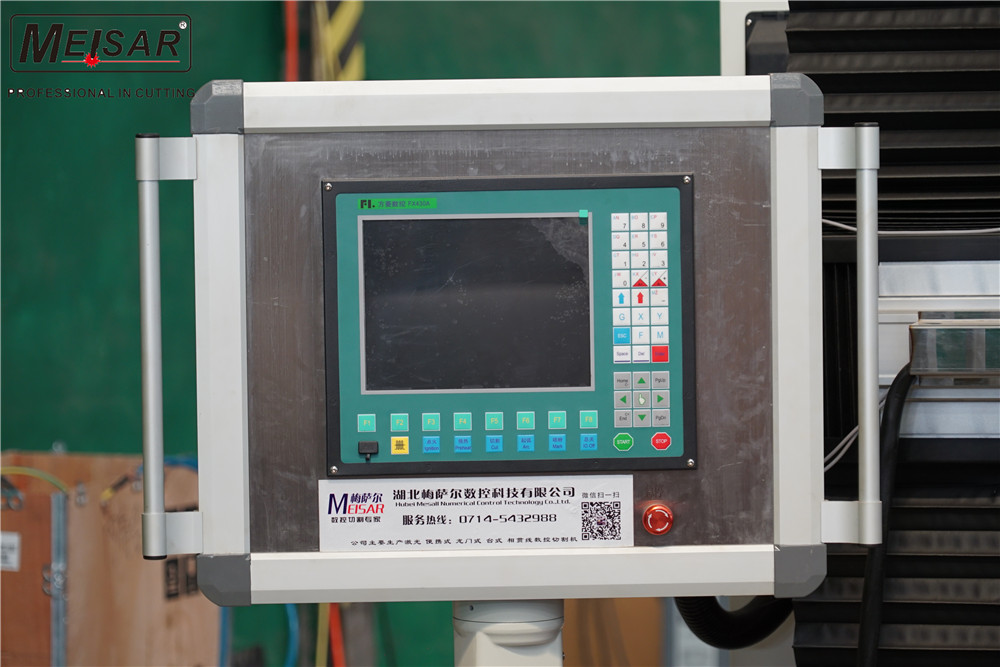

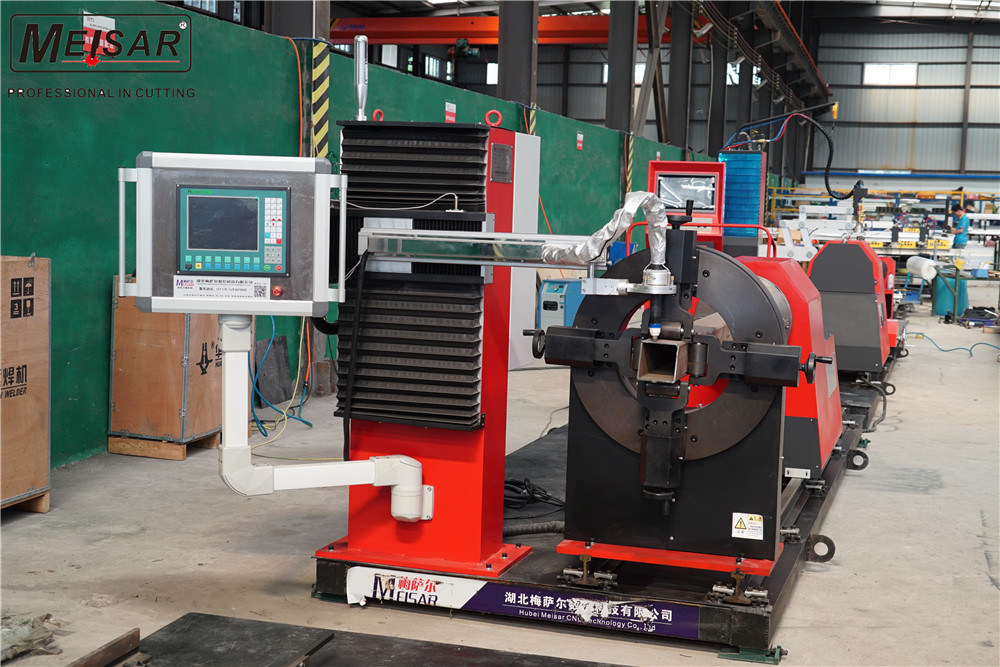

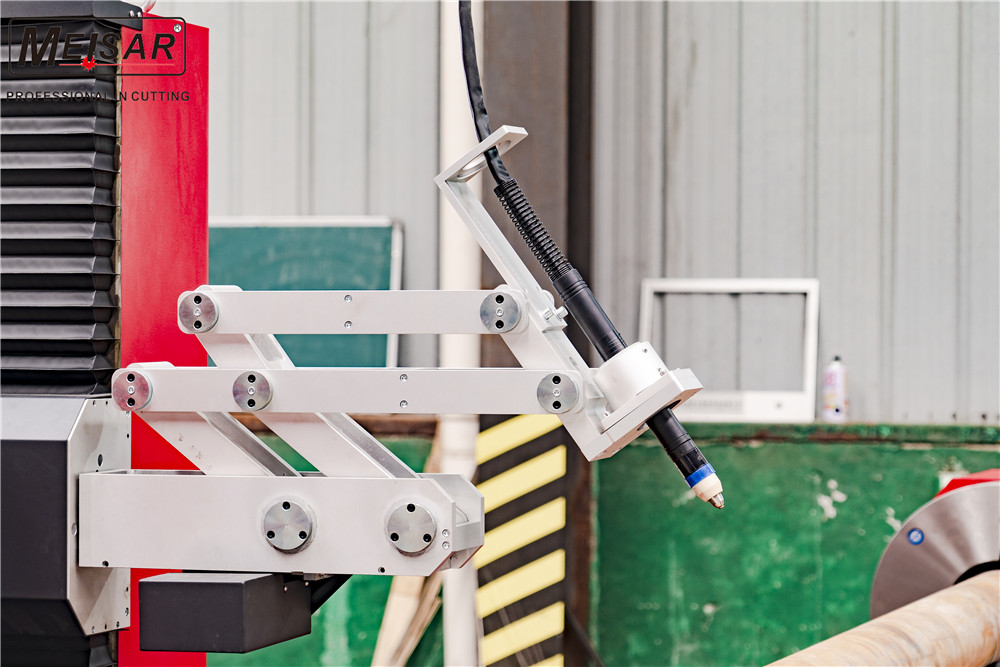

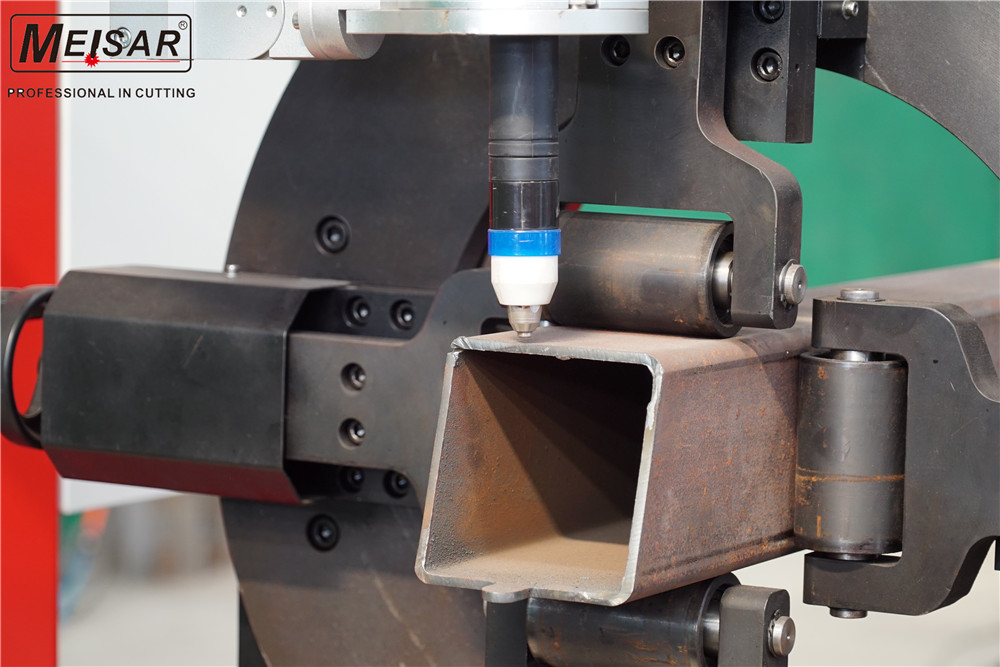

DSC01827 DSC01829 DSC01830 DSC04817 DSC04851
