New Arrival China Steel Tube Cutting Machine – Square tube CNC cutting machine MS-60XF – Meisar Detail:

Features

1.This system realizes six-axis linkage control and the axis can be expanded

2.Support position control method and EnterCAT bus servo driver.

3.Operation control card, can achieve motion interpolation, more stable. 4、Real-time display of 3D graphics cutting (subsequent upgrades added) 5、Support position control mode, pulse output mode: direction/pulse or double pulse.

Technical parameter

Model MS-60XF MS-90XF MS-120XF
Motor type

Imported servo motor
Chuck size

400-type four-jaw chuck (customizable)
Input voltage

Single phase AC-220V
input power

6KW(not include plasma source power
 Effective cutting length of steel pipe 6000mm 9000mm 12000mm
Maximum square tube cutting size

240mm x 240mm
Maximum carrying weigh ≤500KG   ≤ 800KG ≤ 1000KG
Equipment size(mm) 8000x1600x2000 11000x1600x2000 14000x1600x2000
Support rail size

24KG / M fine grinding guide
How to use it

Square tube CNC cutting
Customize information

For other sizes, weight, diameter requirements can be customized according to customer requirements; (If you need to cut the groove can increase to 6 axis)
Cutting type

 Plasma / flame cutting
Torch lifting stroke

≤ 160mm
Operating accuracy

±0.2mm/m
Flame cutting thickness

5mm-120mm
Plasma cutting thickness

Depending on the size of the plasma power supply
Plasma arc pressure is raised

Standard for HP-105 (customizabte)
Gas suppfy requirements

Acetylene / propane gas pressure ≤ 0.1 MP
Oxygen supply requirements

Oxygen maximum pressure ≤ 1MP
Cutting table

Tube cutting Taiwan for the one-piece structure, we provide cutting table drawings customers self-processing

Customer use site

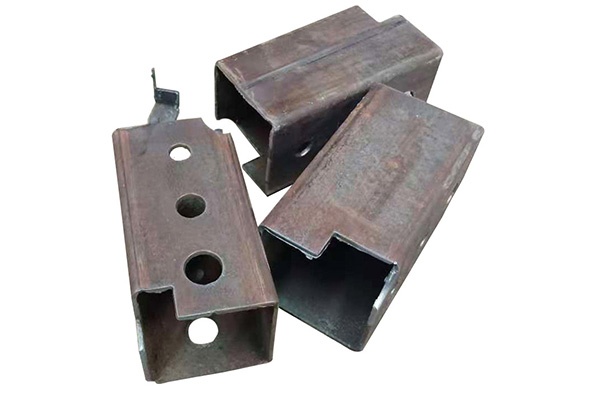

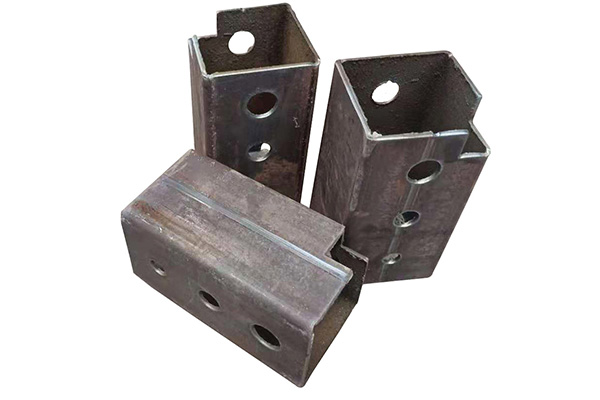

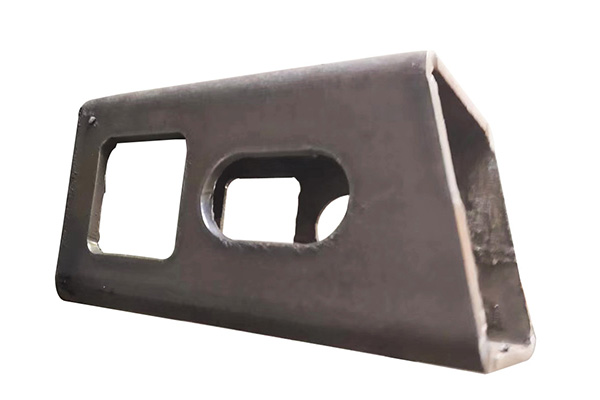

Cutting Sample
