New Arrival China China CNC Bevel Plasma Cutter (CNCBSG)

Short Description:

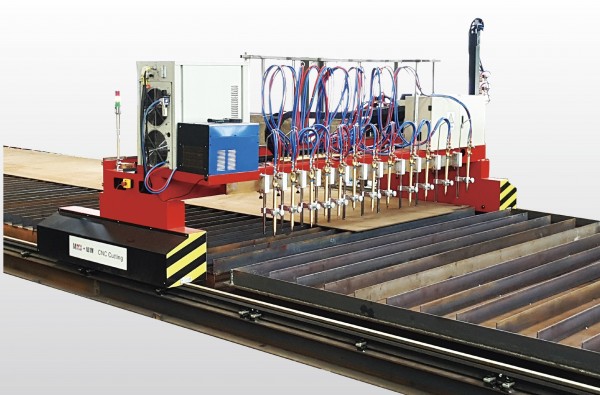

This series of flame cutting machine is a high efficiency and high performance equipment, which uses gantry type, single drive or double drive and combines cnc control, precision mechanism and oxygen cutting. This cnc flame cutting machine uses advanced cnc system from abroad, such as Spanish FAGOR and American Hypertherm. Its excellent cutting parameters, reliable and stable features ensure the perfect cutting effect.


Product Detail

Product Tags

Our target should be to consolidate and enhance the high quality and service of existing goods, meanwhile frequently develop new products and solutions to fulfill distinct customers’ demands for New Arrival China China CNC Bevel Plasma Cutter (CNCBSG), our products have superior popularity from the planet as its most competive value and our most advantage of after-sale service to the clients。
Our target should be to consolidate and enhance the high quality and service of existing goods, meanwhile frequently develop new products and solutions to fulfill distinct customers’ demands for China Cnc Gantry Plasma 3d Bevel Cutting, Plasma Beveling Cutting Machine, We are committed to meet all your needs and solve any technical problems you may encounter with your industrial components. Our exceptional goods and vast knowledge of technology makes us the preferred choice for our customers.
Features

The whole machine adopts the welded steel plate welded structure. The beam is cut by laser cutting and then welded together. The upper and lower sides of the beam are bent by 90 degrees with the steel plate, which can reduce the deformation and increase the rigidity.

This equipment adopts manual adjustment (also can be equipped with overall lifting adjustment) to cut the gun. This equipment comes standard with wireless remote control device, which can operate the straight cutting torch more conveniently and improve work efficiency.

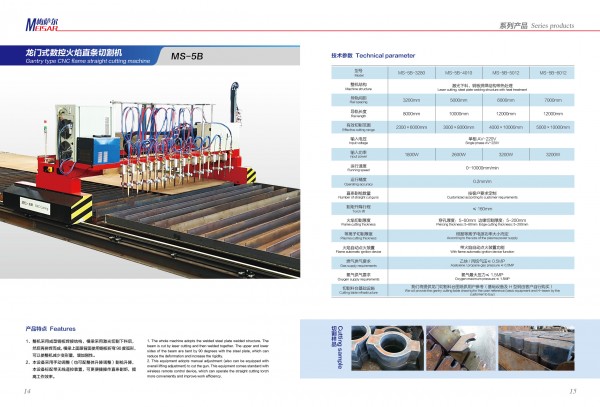

Technical parameter

Model

MS-5B-3280

Machine structure

Laser cutting, steel plate weWing structure with heat treatment

Rail spacing

3200mm

Rail length

8000mm

Effective cutting range

2300 x 6000mm

Input voltage

Single phase AV-220V

input power

1800W

Running speed

0-10000mm/min

Operating accuracy

0.2mm/m

Number of straight cut guns

Customized according to customer requirements

Torch lift

≤ 160mm

Flame cutting thickness

Piercing thickness: 5-60mm Edge cutting thickness: 5-200mm

Plasma cutting thickness

According to the size of the plasma power supply

Flame automatic ignition device

With flame automatic ignition device function

Gas supply requirements

Acetylene / propane gas pressure ≤ 0.5MP

Oxygen supply requirements

Oxygen maximum pressure ≤ 1.5MP

Cutting table infrastructure

We will provide the gantry cutting table drawing for the user reference (basic equipment and H-beam by the customer to buy)

20200825042020082503

2020082505

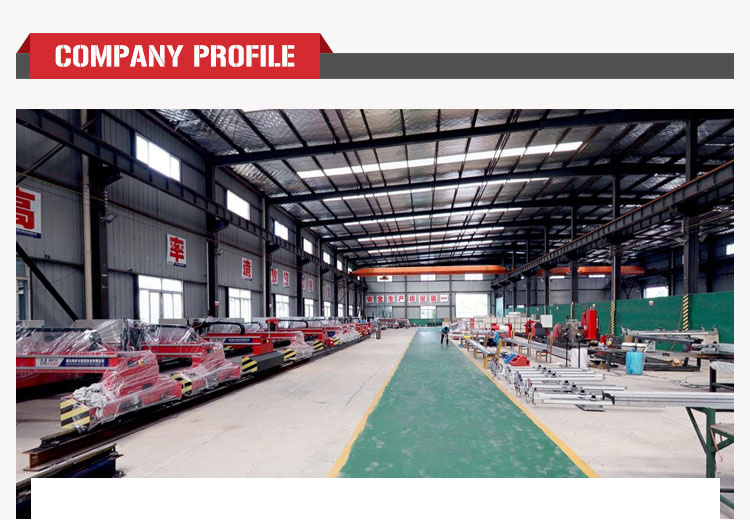

Changzhou Heavth Science& Technogy CO.,LTD. was established in 2006.

We have many years of practical experience in motion control, software and hardware development, industrial automation, etc., .

Development and design of various types of CNC cutting machine and related accessories are widely used in the large number of industrial circle. Available to the user the best price, the most suitable CNC cutting machine. From the customer interests, according to the actual needs of customers, to provide the most economical and most effective CNC cutting solution.

Company research, production, operating as one, strong technical force, advanced production equipment, detection means complete, excellent product quality. Products covering the United States, Japan, Europe, South Korea, etc.
