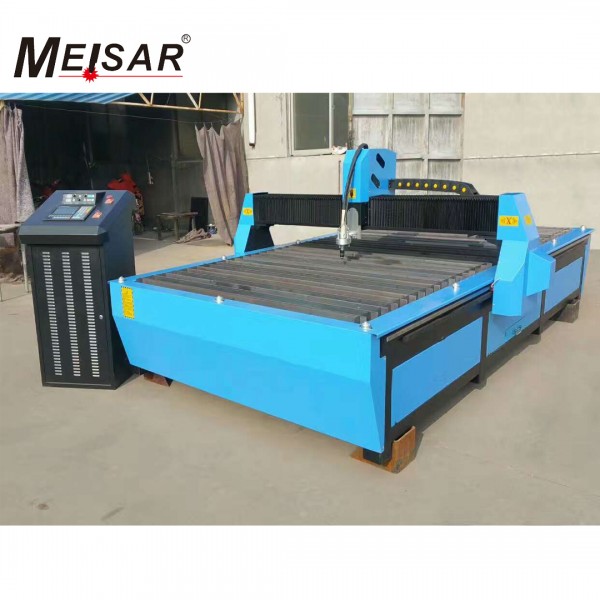

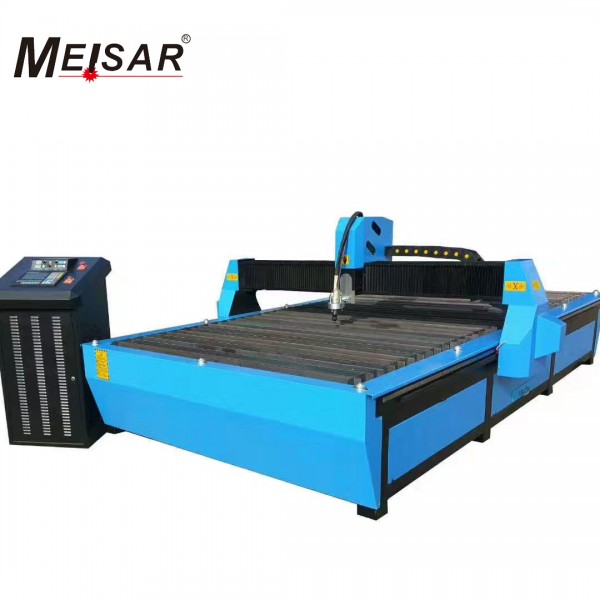

MS-1530T Desktop CNC plasma cutting machine

Short Description:

This series of plasma and flame cutting machine is a high efficiency and high performance equipment, which uses gantry type, single drive or double drive and combines cnc control, precision mechanism and oxygen cutting. This cnc flame cutting machine uses advanced cnc system from abroad, such as Spanish FAGOR and American Hypertherm. Its excellent cutting parameters, reliable and stable features ensure the perfect cutting effect.


Product Detail

Product Tags

The machine configuration

1, the system has automatic bridge, the path to break up, add knife line, automatic positioning and other functions, support PLT, ENG, DXF, G code and other formats.

2, graphics can be any rotation, scaling, X / Y mirror, moments arranged, empty walk, and other functions. Support the processing of pause, forward, backward, high-speed and other functions.

3, automatic seam compensation, the original rail back, forward and other functions. The main features of the device - efficient: the fastest up to 15m / min Stability: the choice of high-quality high-quality components, the top core components. Energy saving: change the traditional backward technology, the equipment cutting workload With the workload of three workers in the workpiece, so as to save you cost.

4, only a few steps can achieve the purpose of cutting

Technical Parameters

Name

Industrial desktop CNC piasma cutting machine

Model MS-1530T MS-1540T MS-1560T MS-1530TX-SE MS-1540T-SE MS-1560TX-SE
Motor type

Dual drive 86 # motor + planetary gear reducer

Dual drive Panasonic servo motor + planetary gear unit

Effective cutting range (X/Y) 1500*3000 1500*4000 1500*6000 1500*3000 1500*4000 1500*6000
Customize information

Longitudinal rail length (Y axis) can be extended or shortened according to user requirements

Rail spacing 2050mm 2050mm 2050mm 2050mm 2050mm 2050mm
Rail length 3850mm 4350mm 6800mm 3850mm 4350mm 6800mm
Torch raise type

1, plasma arc pressure increase 2, pneumatic control increased

Input voltage

Single-phase AC-220V (soot cleaning equipment AC-380V) can be customized other voltage

input power

About 1100W (dust purification equipment about 2200W)

Running speed

0-10000mm/min

0-10000mm/min

Cutting type

Plasma arc pressure adjustment Automatic cutting / plasma pneumatic adjustment cutting

Workpiece gas

Compressed air (0.4Mpa-0.55Mpa)

Emergency stop switch

Yes

Workpiece ambient temperature

-5℃/50℃

Relative humidity

≤95%不凝结

transfer method

Gear rack drive

Torch lift

≤ 150mm

Operating accuracy

0.2mm/m

Plasma cutting thickness

Depending on the size of the plasma power supply

Cutting table infrastructure

Cutting the host for the one-piece structure, we provide the whole machine, no need to do material
