High Quality Portable Cnc Plasma - Portable CNC flame&plasma cutting machine – Meisar Detail:

product description

Hubei Meisar CNC Technology Co., Ltd. carefully developed and developed a high-precision portable CNC flame / plasma cutting machine, its affordable, easy to use and easy to learn more accurate. Than the original cutting machine processing format larger, thicker cutting thickness. For wider,High strength, durable for a long time Effectively reduce processing costs. Machine covers an area of small, fully effective equipment to play the effectiveness.

Features

1, the new special high-strength hard aluminum alloy rails, the whole operation smooth and no noise, with high-speed high-precision and so on. 2, the whole operation is simple, full-featured, with man-machine dialogue and so on.

3, can be achieved CAD file into a working program file, automatic nesting function, through the U disk transmission to the transmission to The system mainframe cuts the metal material arbitrarily.

4, with portable CNC cutting machine function, for carbon steel, stainless steel and non-ferrous metal cutting.

5, with plasma flame plasma dual-use cutting function.

6, with Chinese, English, French, Russian and other languages.

7, the system has automatic power off memory and automatic recovery function.

8, increase the way： electric height and arc pressure automatically increase the two, the flame for the electric increase, the plasma for the arc pressure automatically raised, self-test plate Adjust the change and automatically increase the height of the torch and steel plate, to avoid cutting the gun hit the steel plate to reduce losses.

Technical Parameters

Name	Portable CNC flame cutting machine				PortableCNC plasma cutting machine
Model	MS-1525HX	MS-1530HX	MS-1560HX	MS-2040HX	MS-1525HDX	MS-1530HDX	MS-1560HDX	MS-2040HDX
Arc pressure increase	No arc pressure adjustment device				There is arc height adjustment device
Cutting range (X * Y)	1600*2500	1600*3000	1600*6000	2000*4000	1600*2500	1600*3000	1600*6000	2000*4000
Customizeinformation	The length of the guide rail (effective cutting length Y axis) can be customized according to customer requirements
Y-axis guide size	300029365	350029365	650029365	450029365	300029365	350029365	650029365	450029365
Motor type	57 # stepper motor
Torch raise type	Electric up				Plasma arc pressure is automatically raised
The number of lifts	1set
nput voltage	Single phase AC-220V
input power	About 220W
Running speed	0-6000mm / min (max 8000mm / min)
Cutting type	Flame / plasma cutting
Drive mode	Gear rack drive
Torch lift	0-105mm
Operating accuracy	0.2mm/m
Flame cuttingthickness	Piercing ability：5-60mm edge cutting 5-150mm
Plasma cuttinthickness	Depending on the size of the plasma power supply
Flame ignition device	Standard with no (customizable)
Gas requirements	Acetylene / propane gas pressure ≤ 0.1MP
Oxygen requirements	Oxygen maximum pressure ≤ 1MP
Selection of color	Red, yellow and blue
Cutting table	We provide cutting table drawings for the user reference (material required to purchase their own users)

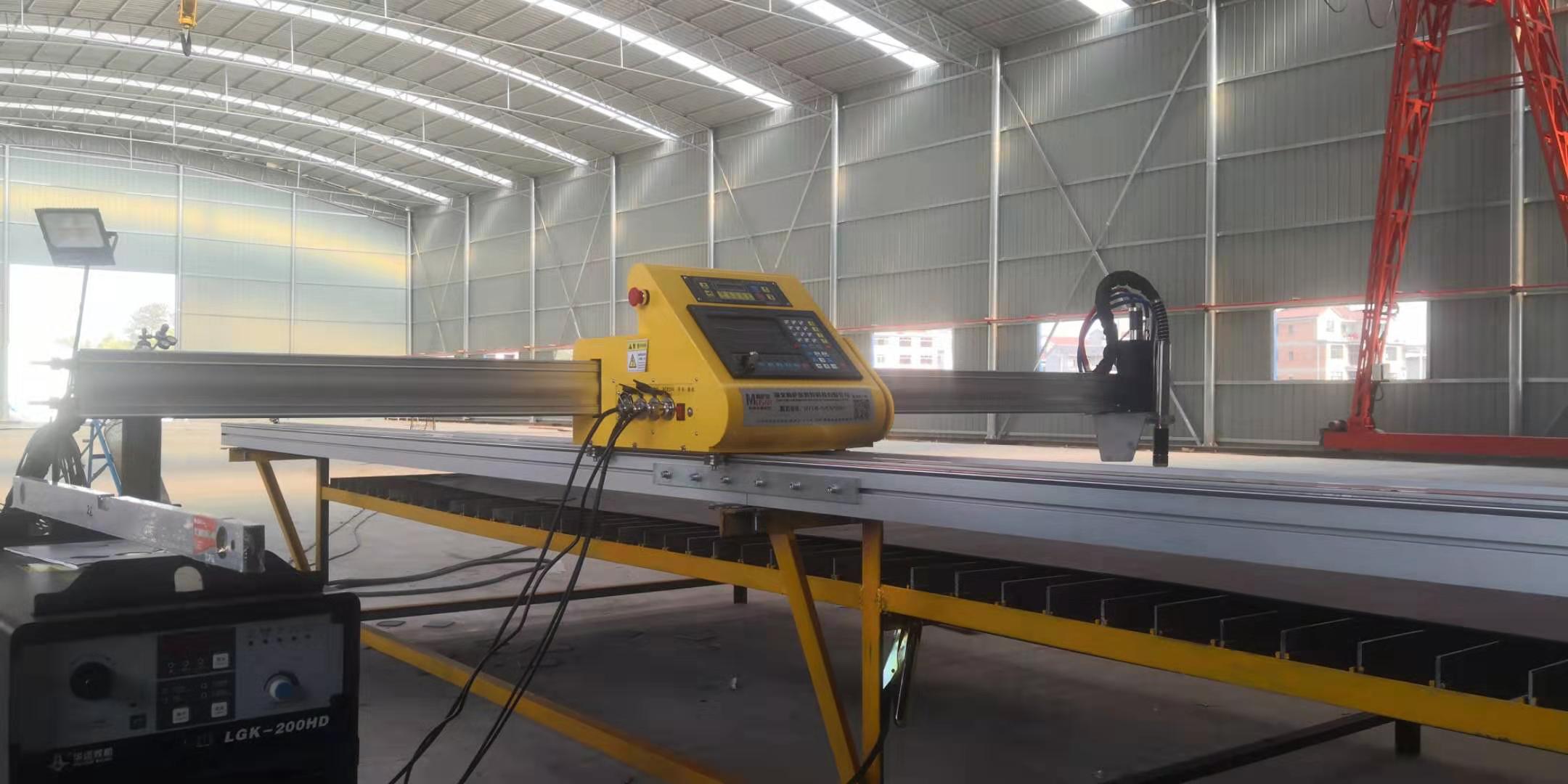

Customer use site

Customer use site<br />

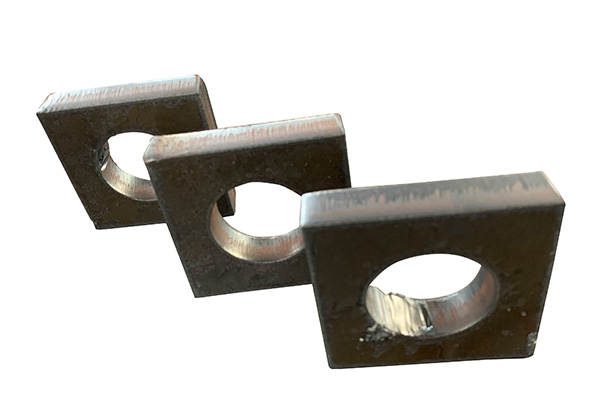

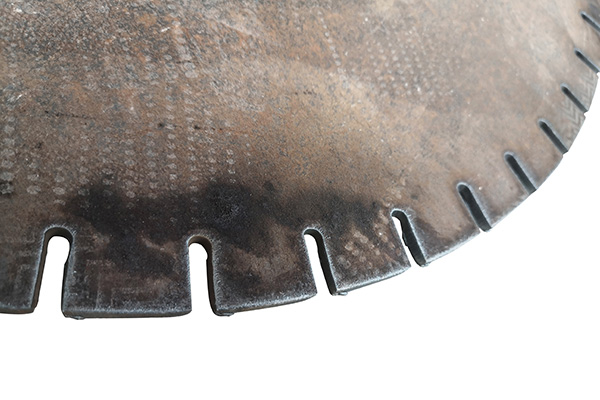

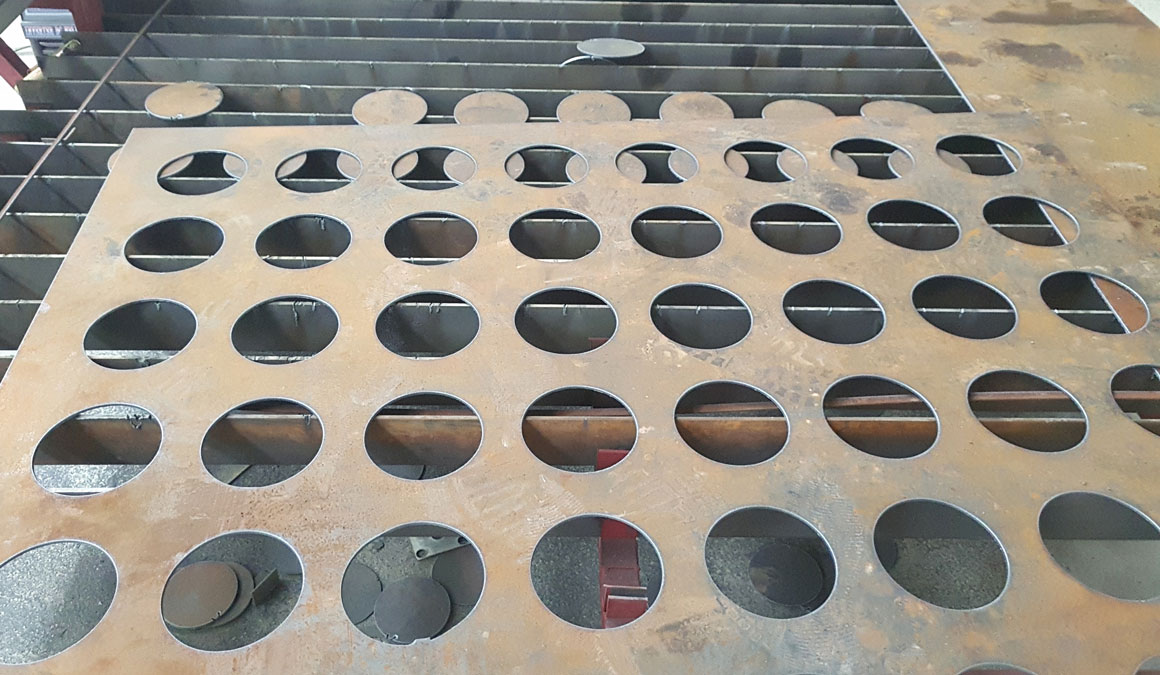

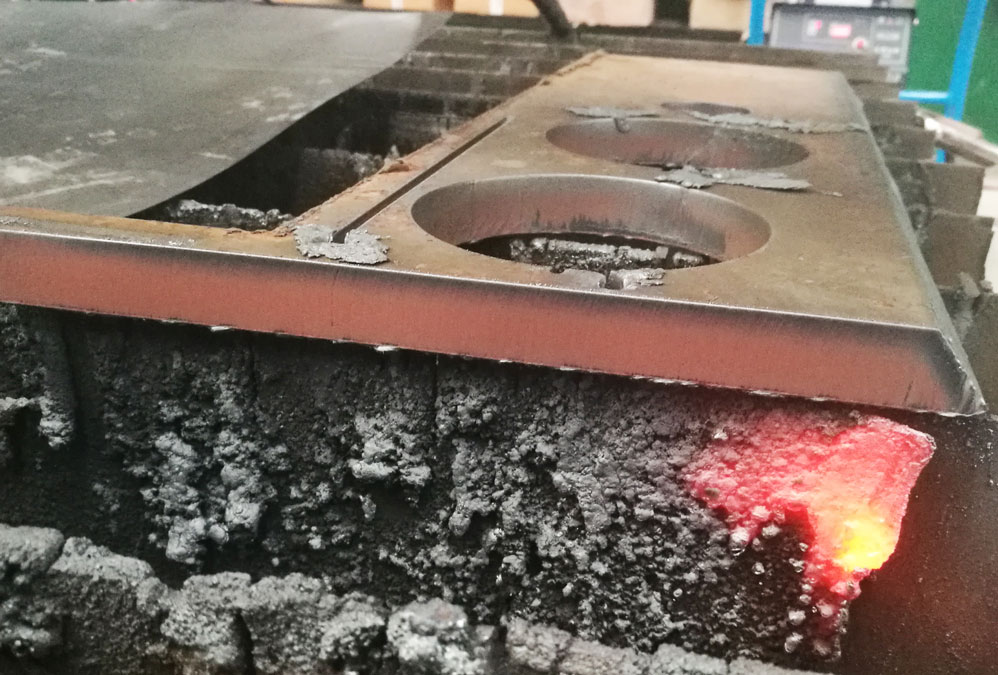

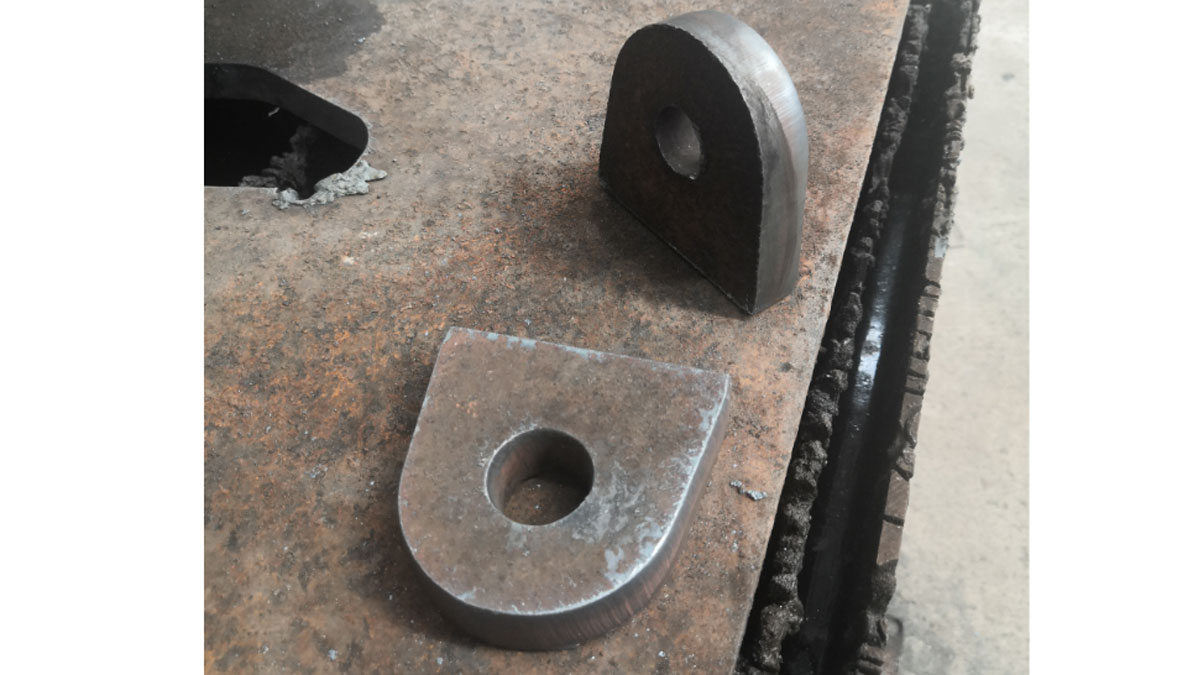

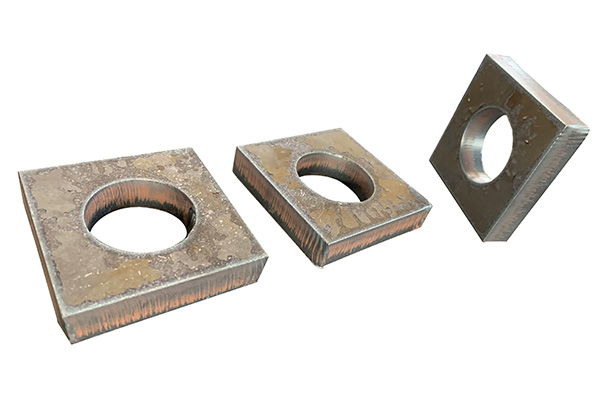

Cutting Sample

jjk (3)

jjk (1)

jjk (2)

Product detail pictures:
