High Quality Intersection Cutting Machine - MS-6XG CNC Intersection Cutting Machine – Meisar Detail:

Features

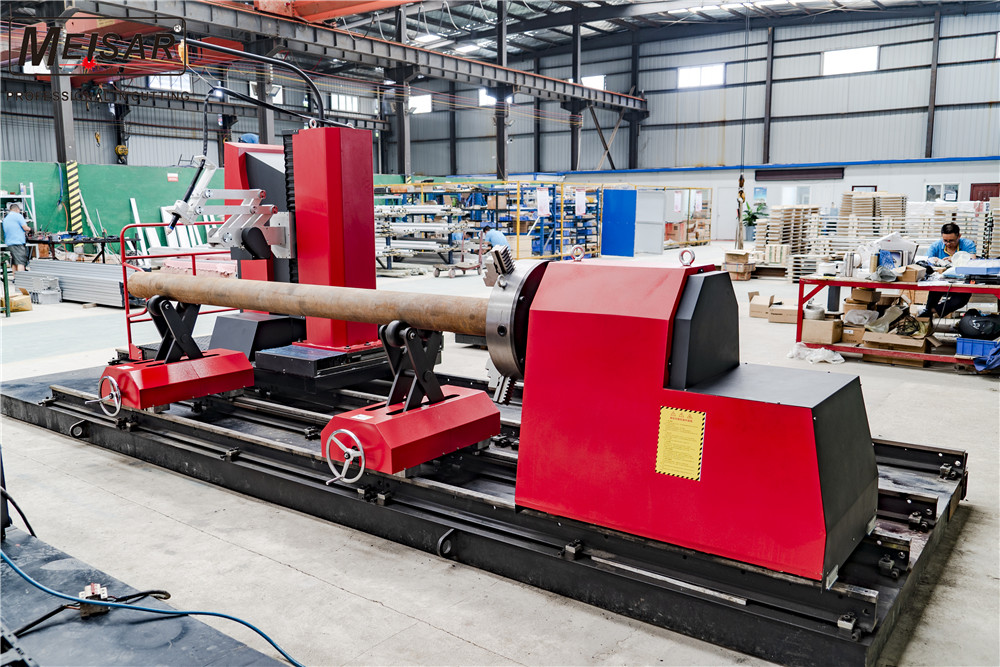

1、 MS-6XG series CNC pipe intersecting wire cutting machine is a kind of equipment for automatic calculation and cutting of the joint of steel pipe end.

2、 CNC pipe cutting machine adopts cylindrical coordinate coefficient control, and the number of control axes is 6 axes and 5 linkages. It has Chinese interface, parameter input variable angle groove surface cutting function, pipeline non-roundness and eccentricity compensation function.

3、The numerical control interface of 3/CNC pipe cutting machine is combined with graphics and data. The operation is very simple: the operator only needs to set the parameters such as the radius of the main pipe and the branch pipe, the intersection angle, the cutting speed and so on.

DSC04853

Technical parameter

Serial number

project

parameter

1

 Effective cutting range (mm) 6000mm-120000mm

2

 Tube diameter cutting range (mm) Ф60mm～Ф500mm

3

 Input voltage 220±10%V  AC 50HZ/60HZ 220W

4

 Total power About 1000w

5

 Rated rotation speed 0-15rpm (can be adjusted according to customer requirements)

6

 Reset accuracy ±0.2mm/m

7

 Pipe Ovality ≤2%

8

 Running accuracy ±0.2mm/m

9

 Number of CNC controlled axes 6 axis 5 linkage

10

 Chuck size 500#

11

 Cutting torch lifting stroke 400mm

12

 Maximum tube weight 1500KG

13

 Plasma cutting thickness Depending on the size of the plasma power source selected by the user

14

 Flame uses gas form Oxygen + acetylene / oxygen + propane

15

 Flame cutting tube wall thickness 5mm ~ 50mm (optional)

16

 Gas pressure ≤0.08MP

17

 Oxygen pressure ≤1.0MP

18

 Cutting material table Provide material table drawings
