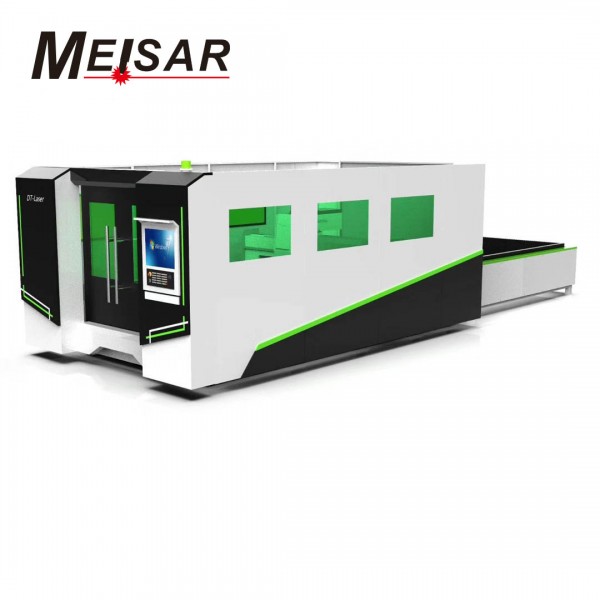

H6025 Whole cover fiber laser cutting machine

Short Description:

H-series whole cover fiber laser cutting machine with a fully enclosed design; The observation window adopts an European CE Standard laser protective glass; The smoke produced by cutting can be filtrated inside, it’s non-polluting and environmentally friendly; The weight of machine is 7500kg.


Product Detail

Product Tags

1000W/2000W/3000W fiber laser cutter is suitable for metal cutting such as Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

With rotary device options, it can also cut metal tubes and pipes.

Technical Specification

Product Name

Laser Cutting Machine

Model

H6025

Control System

CypCut

Max Acceleration

1.5G

Repeated Location Accuracy

±0.02mm

Cutting Mode

Laser Cutting

Laser Power

1000W.2000W.3000W

Max Cutting Speed

120m/min

Working Area

1500MM*3000MM

Main Features:

1. The machine adopts gantry type single-side double-drive structure, imported high-precision reducer, gear rack and linear guide, smooth transmission, fast acceleration, Bit precision.

2. Both the bed and the moving beam adopt the whole welded structure. After annealing, rough machining and vibration aging, the welding process can be completely eliminated. Processing of stress, rigidity, high precision, can be maintained for a long time without deformation.

3. X, Y axis with high-precision servo motors, bed movement performance greatly improved, acceleration up to 1.5G, to ensure that the whole machine has high speed and high acceleration performance.

4. Using the Windows operating system based CypCut fiber laser cutting machine dedicated CNC system, integrated a lot of laser cutting control dedicated functions Module, powerful, simple operation.

5. Switzerland RAYTOOLS Laser Head is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.

6. Germany imported high-precision electronic proportional valve, precise control of cutting auxiliary gas pressure, in order to achieve the best cutting results.

Exchanging Platform:

It adopts an up and down exchange platform;

The converter is responsible for controlling the exchanging motor;

The machine is able to finish the platform exchanging within 15s.

The Third Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.

Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

Aluminum Gantry



3rd Generation Aviation Aluminum Gantry



The Segmented Rectangular Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes.

Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

  •   High strength, stability, tensile strength, ensuring 20 years of use without distortion;
  •   Thickness of rectangular pipe wall is 10mm,and weights 4500 kg.

The Segmented Rectangular Tube Welded Bed



Laser cutting head, it can focus automatically

  • Without manual focusingThe software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
  • Bigger adjustment rangeAdjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
  • Long service lifeCollimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Meisar fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and German Neugart reducer.

The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to 10 years.
