Good Wholesale Vendors Custom Cnc Plasma Cutting - MS-4GB-4012Gantry Pipe and Plate integrated cutting machine – Meisar Detail:


Features

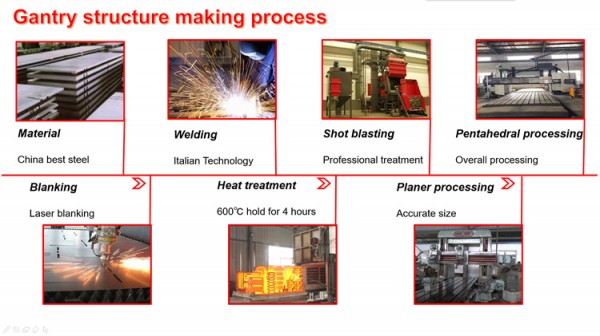

  1. The whole machine adopts the welded steel plate welded structure. The beam is cut by laser cutting and then welded together. The upper and lower sides of the beam are bent by 90 degrees with the steel plate, which can reduce the deformation and increase the rigidity.
  2. The beam hanging plate is welded with 20mm steel plate, and the whole surface is processed by gantry planer to reduce the deformation of the whole surface and improve the precision.
  3. After the whole machine is welded, firstly, the aging treatment is performed after stress aging, followed by the surface rust removal treatment. After the primer is applied, the surface is painted.

Technical parameter

Model

MS-4GB-4012
Overall size

4000×12000
Effective cutting range

3000 x 10000mm
Round tube cutting length

12000mm
Cutting tube diameter

Φ50-500mm (can be customized according to customer requirements)
Operating accuracy

0.2mm/m
Pip bearing weight

2000KG
Numerical control linkage number

3-axis 2 linkage
Number of supports

4 sets
Tube ellipticity

≤2%
 Cutting type

tandard: flame + plasma dual-purpose cutting (can be customized)
transfer method

Gear rack drive
Torch lift

≤160mm
Flame cutting thickness

Piercing thickness: 5-60mm Edge cutting thickness: 5-200mm
Plasma cutting thickness

According to the size of the plasma power supply
Gas supprfy requirements

Acetylene / propane gas pressure ≤0.1 MP
Oxygen supply requirements

Oxygen maximum pressure ≤1MP
Cutting table infrastructure

We will provide the gantry cutting table drawing for the user reference (basic equipment and H-beam by the customer to buy)

 20200825032020082503
龙门板管详情

Product detail pictures:

Good Wholesale Vendors Custom Cnc Plasma Cutting - MS-4GB-4012Gantry Pipe and Plate integrated cutting machine – Meisar detail pictures
