Good Quality Intersection Cutting Machines - CNC Intersection Cutting Machine MS-5030X – Meisar Detail:
Features
The machine is designed with advanced and reliable structure. The CNC system has a Chinese interface and can change data within the system to achieve the products that need to be cut; the operation is very simple and easy to understand; and it is suitable for long-term continuous processing operation with stable and reliable control.
The software designed a reasonable cutting lead wire to ensure the working quality of the cutting surface. The whole motor adopts imported servo motor, the freight is more stable; the service life is longer and the stability is more reliable.
Technical parameter
| Model | MS-5030X | MS-5060X | MS-5090X |
| Motor type |
Delta ASDA400W-1000W |
||
| Chuck size |
500-type three-jaw chuck (customizable) |
||
| Input voltage |
Single phase AC-220V |
||
| input power |
3KW(not include plasma source power |
||
| Effective cutting length of steel pipe | 3000mm | 6000mm | 9000mm |
| Pipe diameter |
Standard Φ60mm-600mm (can be customized large diameter) |
||
| Maximum carrying weight | ≤ 800KG | ≤ 1200KG | ≤ 1500KG |
| Support rail size |
24KG / M fine grinding guide |
||
| Cutting type |
Plasma / flame cutting |
||
| Tube oval |
≤2% |
||
| Number of pipe supports | 1Set | 2Set | 3Set |
| Number of NC linkage axes | 2 axis | 2 axis | 2 axis |
| Torch lift |
≤105mm |
||
| Operating accuracy |
± 0.2mm/m |
||
| Flame cutting thickness |
5mm-120mm |
||
| Plasma cutting thickness |
Depending on the size of the plasma power supply |
||
| Gas supply requirements |
Acetylene / propane gas pressure ≤ 0.1MP |
||
| Oxygen supply requirements |
Oxygen maximum pressure ≤1MP |
||
| Cutting table |
Tube cutting Taiwan for the one-piece structure, we provide cutting table drawings customers self-processing |
||
Customer use site

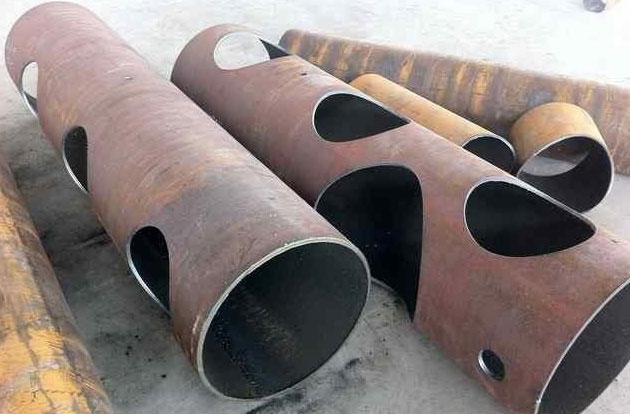

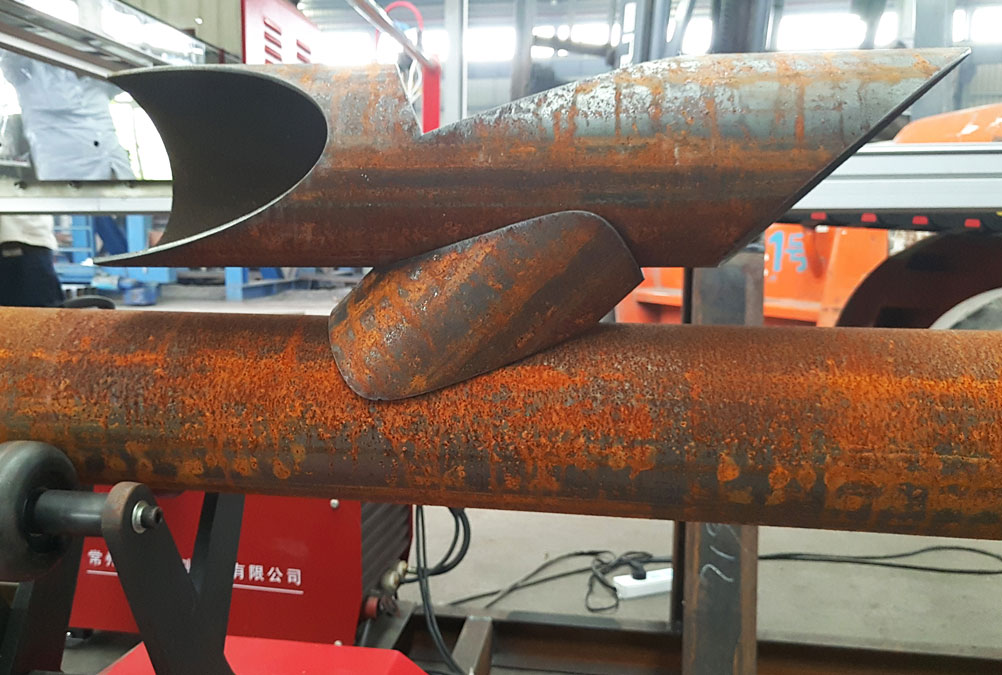

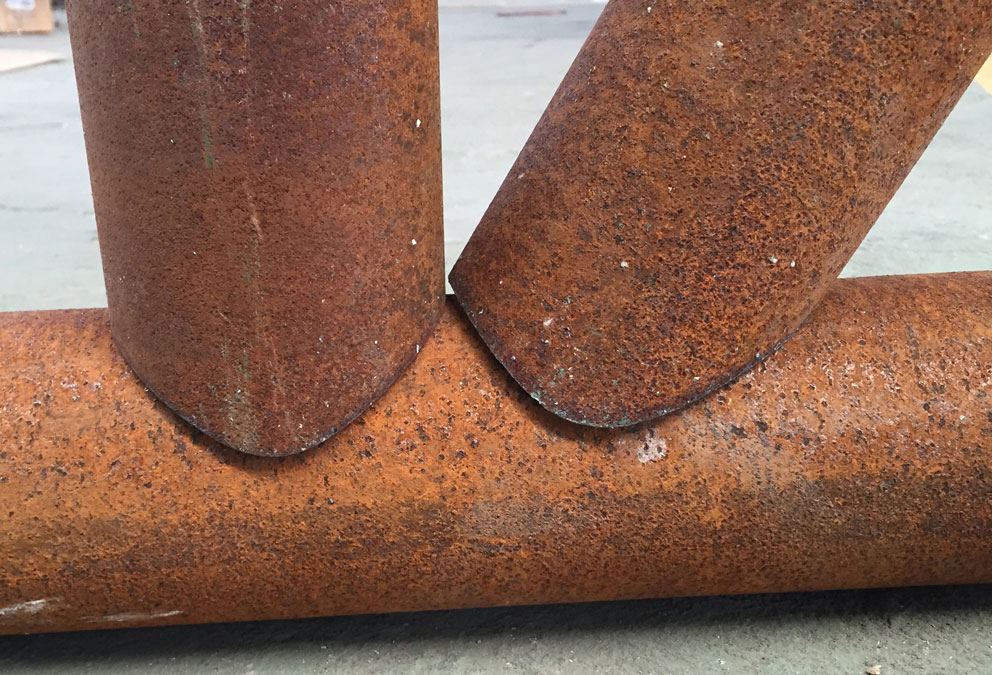

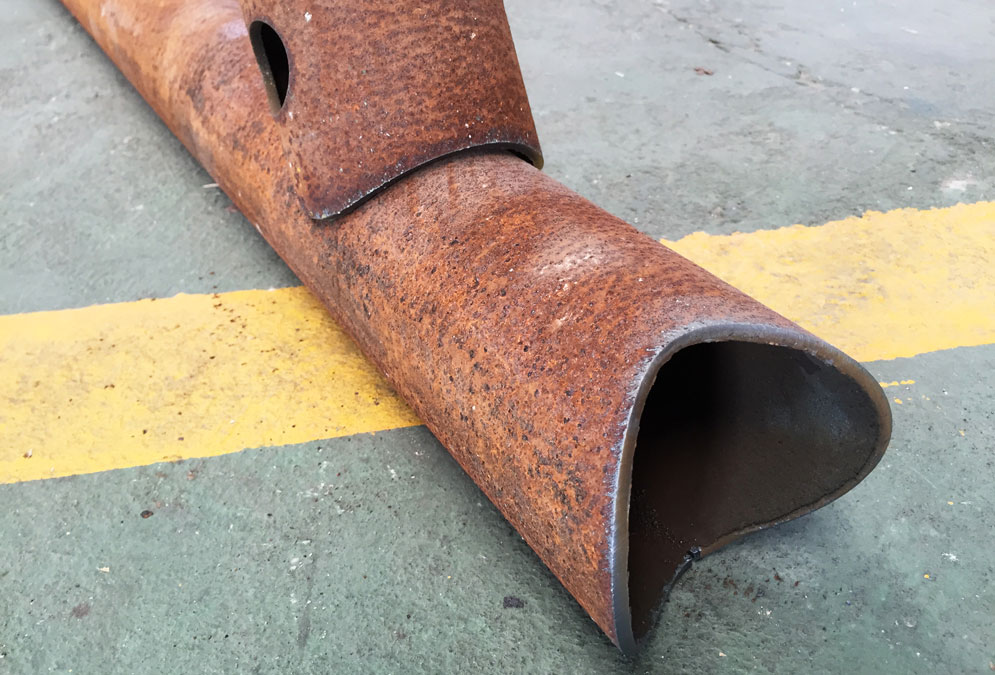

Cutting Sample
