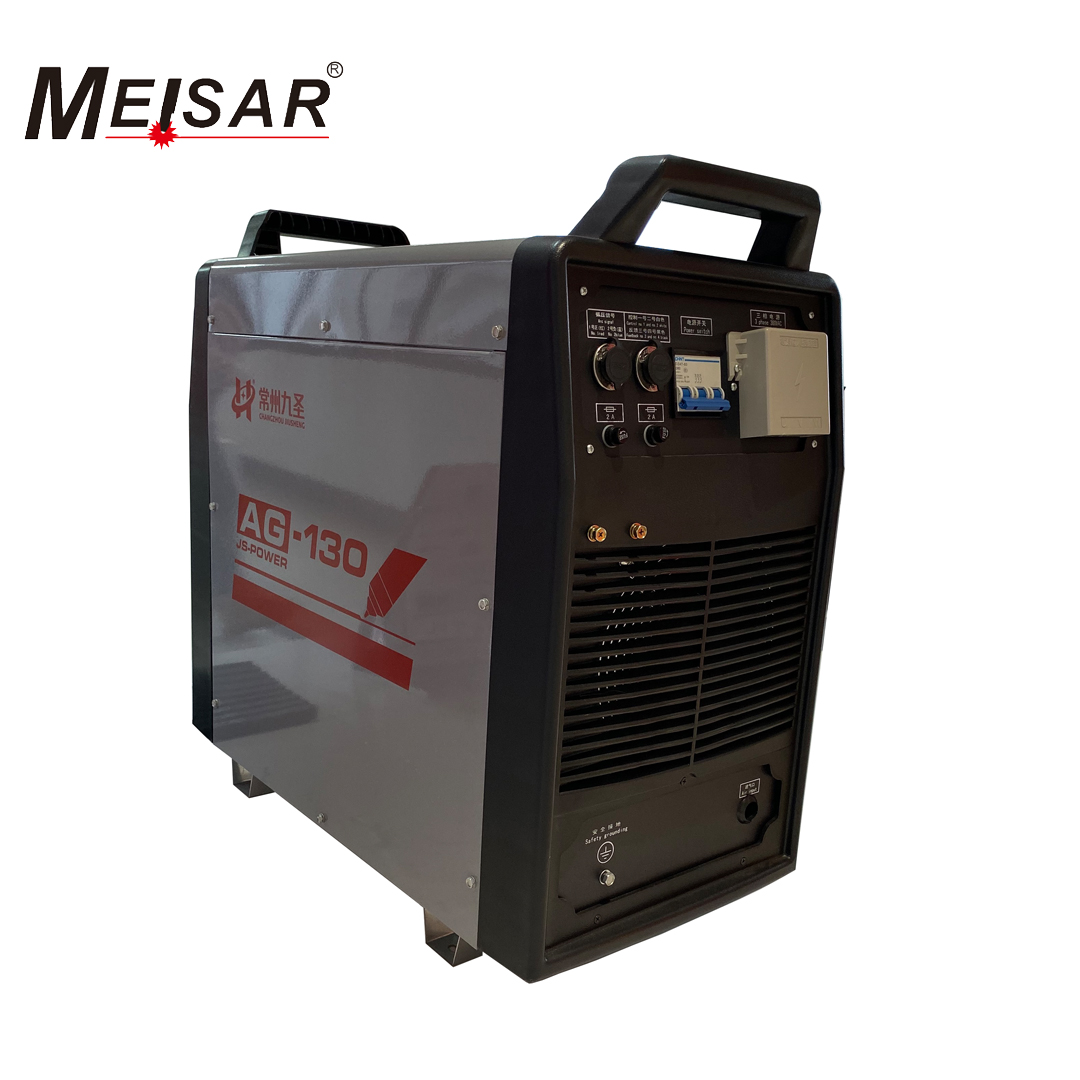

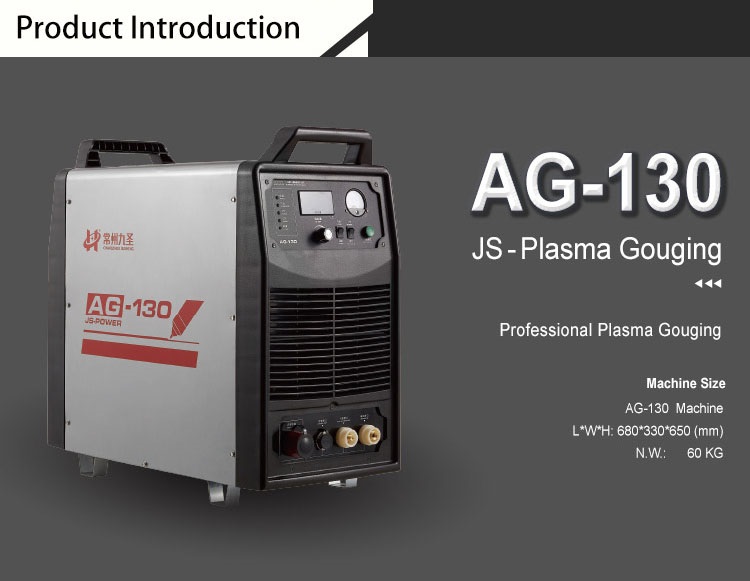

AG-130 Meisar Plasma Power Source

Short Description:

CUT series plasma cutting machine adopts the most advanced power saving technology,IGBT Inverter, Precision preset cutting current,Cutting metal materials.

Note:

1,The maximum perforation thickness 20mm, 16mmthickness or less is recommended perforation

2, For inclined cut (to play bevel), the angle of the workpiece with the torch must be greater than 45 °

Send email to us Download as PDF

Product Detail

Product Tags

Name	CUT—120
Rated inputvoltage(V)	50HZ/3~380±10%
Rated input current(A)	27
DC load voltage(V)	315
DC voltage(V)	94—120
DCoperating current(A)	35—100
Duty cycle(%)	100
Calculating cycle(min)	60
Input pressure(MPa)	0.7
Gas flow(L/min)	130
Dimensionslength, width and height(cm)	70×32×61
Total Weight(kg)	45

No.	Cutting material	Material thickness(mm)	Pierce height(mm)	Cuttingheight(mm)	Cutting current (A)	Cutting speed(mm/min)
1	Stainless steel	3	4	3	60	1900
2	Stainless steel	6	4	4	60	750
3	Stainless steel	5	4	4	90	2600
4	Stainless steel	6	4	4	90	1800
5	Stainless steel	10	5	4	90	1400
6	Stainless steel	12	5	4	100	890
7	Stainless steel	15	6	5	100	630
8	Stainless steel	20	It does not allow perforation, Onlyedge arc cutting	5	100	500
9	Stainless steel	25		5	100	250
10	Stainless steel	30		5	100	180
11	Aluminum	3	4	3	60	2500
12	Aluminum	5	4	4	60	1000
13	Aluminum	6	4	4	90	1600
14	Aluminum	8	5	4	90	1400
15	Aluminum	10	5	4	100	1300
16	Aluminum	12	5	4	100	1000
17	Aluminum	15	6	5	100	760
18	Aluminum	20	It does not allow perforation, Onlyedge arc cutting	5	100	600
19	Aluminum	25	It does not allow perforation, Onlyedge arc cutting	5	100	400
