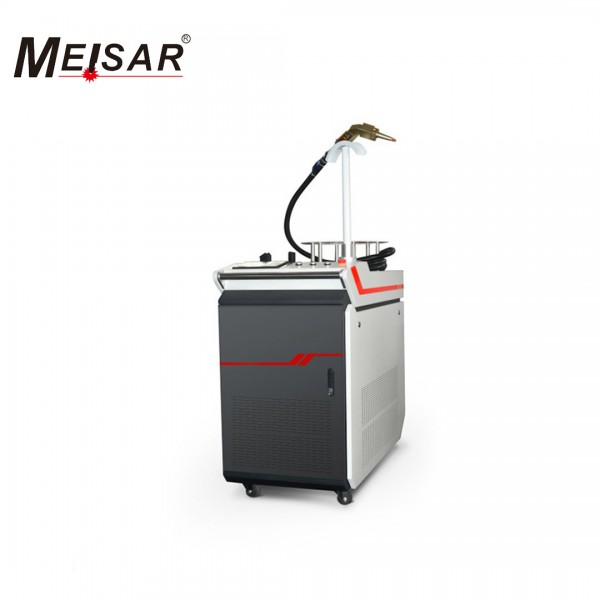

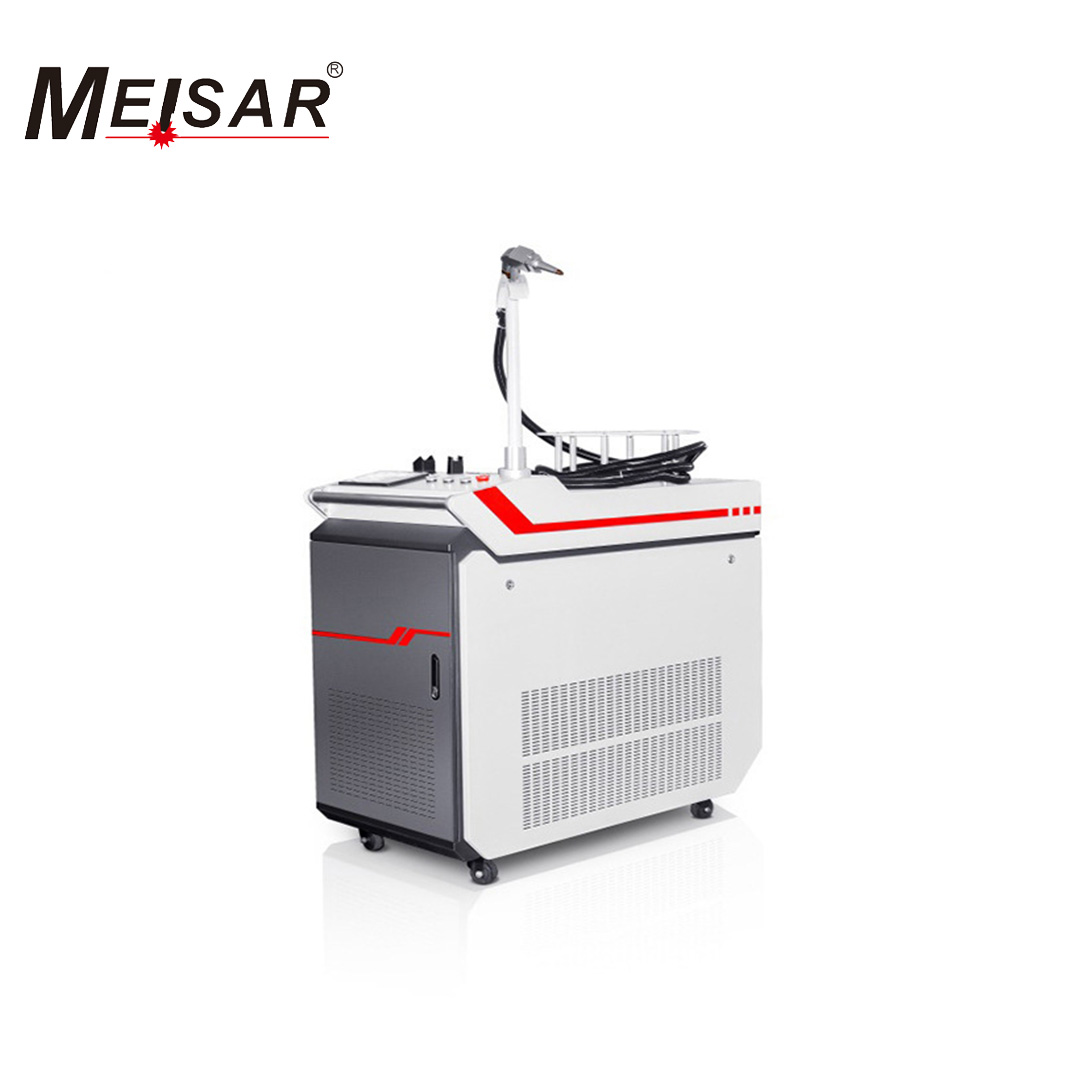

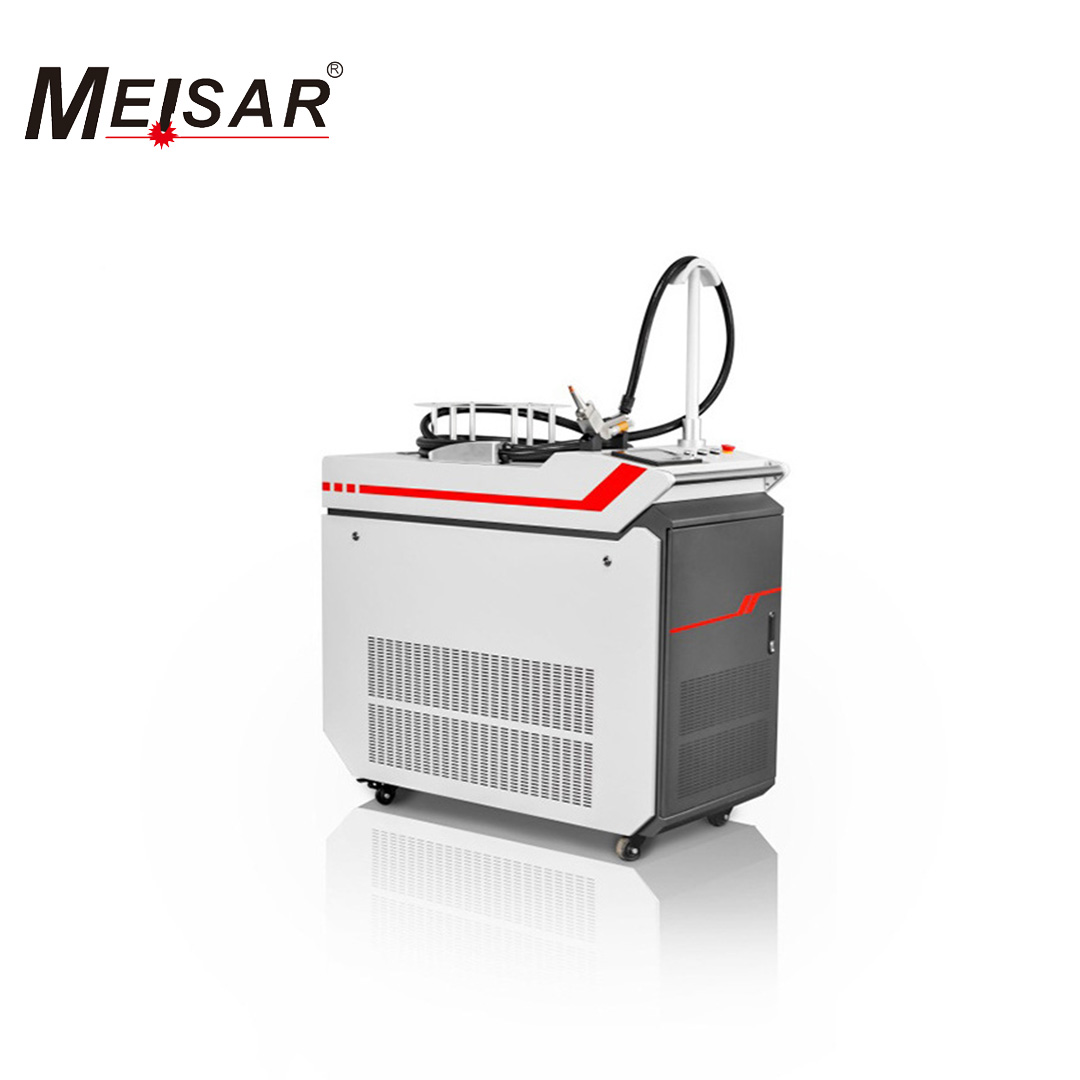

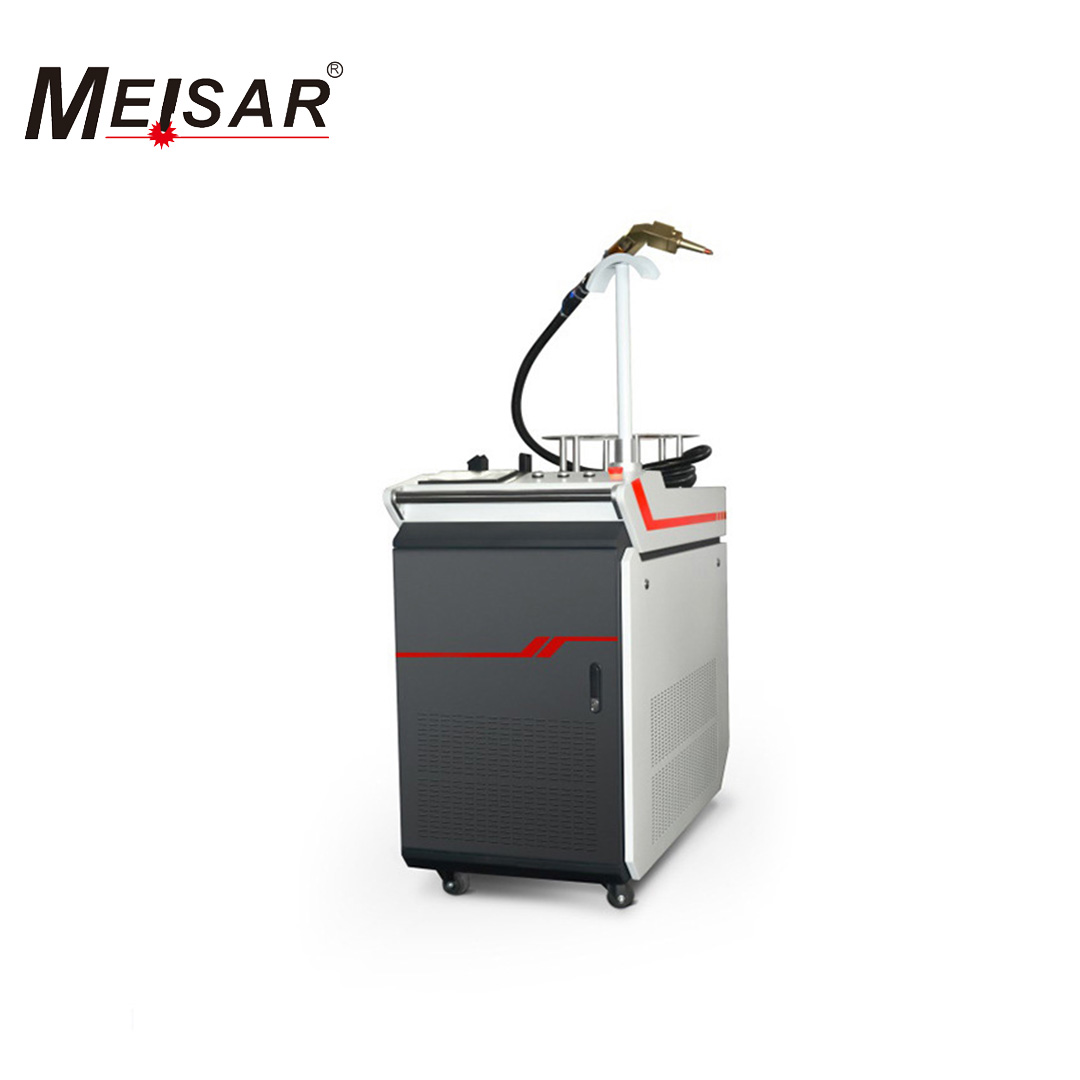

1000W Fiber Laser Welding Machine

Short Description:

Along with the development of fiber laser source, hand-held laser welding machine was widely used and changed the industrial welding market by making it much simpler for different angle and welding processing like stitch welding, tailor welding and seam welding.

It could completely replace the applications of traditional arc welder and electric welder technology

in thin stainless steel, iron sheet, aluminum plate and other metal sheet.


Product Detail

Product Tags

 1000W Fiber Laser Welding Machine  Along with the development of fiber laser source, hand-held laser welding machine was widely used and changed the industrial welding market by making it much simpler for different angle and welding processing like stitch welding, tailor welding and seam welding.

It could completely replace the applications of traditional arc welder and electric welder technology in thin stainless steel, iron sheet, aluminum plate and other metal sheet.

Technical Specification

Product Name

Laser Welding Machine

Power Supply

AC380V±10% | 50Hz

Fiber Laser Source

Raycus

                Fiber-optic Cable Length                  10m

Repeated Location Accuracy

±0.02mm

Connecting Mode

QBH Type

Laser Power

1000W.2000W.3000W

Handheld Welding Head Focal Distance

100m

Water Cooling System

 Heavth Laser Customized Model



Main Features:

1.Smart interior design and good interactive control system which enlarge the tolerance range of the welding parts and the weld width. It solves the disadvantage of small laser welding spot with better weld formation /shaping.

2.Lightweight and ergonomic design, comfortable grip, easy to control with one hand and simplified operation.

3.Multiple safety alarms, automatic locks light after removing the workpiece, with high security.

4.Smooth & good-looking weld seam, fast speed, no consumables, no discoloration, no need for extra processing.

5.A variety of angle nozzles can be configured to meet the welding needs of different products.

China Manufacturer 1000w Handheld Fiber Laser Welding Machine

China Manufacturer 1000w Handheld Fiber Laser Welding Machine

China Manufacturer 1000w Handheld Fiber Laser Welding Machine

QUALITY MANAGEMENT SYSTEM

Heavth CNC is one of the biggest suppliers among cutting equipment in east China. Company mainly engage in CNC laser cutting machine, CNC plasma cutting machine, CNC Pipe/Tube cutting machine, etc. Heavth CNC has 14 years history, serving more than 80 countries and regions.

Heavth CNC has strict quality control system and quality management team. Strictly adhere to the general standards of the industry and company guidelines. Implement quality monitoring from every aspect of R&D, production and after-sales of laser equipment, to ensure that each device can meet customer’s requirements.
